We Supply Whole Line Solution of Thermoforming and Packaging. Our New Type of Four Station Thermoforming Machine is Much more advanced Products in China
10 Years
| Ask Lasest Price | |
| Brand Name : | JH |
| Model Number : | 520H |
| Certification : | CE |
| Price : | USD 54000- 60000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5 SETS PER MONTH |
| Delivery Time : | 60 WORKING DAYS |

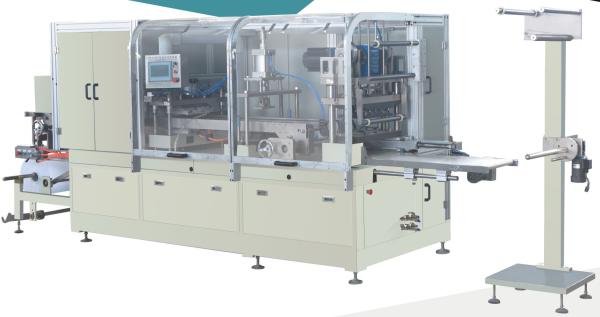

This Plastic Thermoforming Machine forming and cutting neat and Clear. Cutting Off the product in order. Also good use for PS, PE,PVC etc.
Whole machine is mainly made up by four Parts:
Preforming the raw material
Forming the products
Batching the hole
Cutting and stacking the products
Specification:
| Model | JH-520T(Up & down heater) |
| Punch Frequency | 10-35punch/min |
| Material | PP/PS/PET/PVC/PLA |
| Max. Forming Length | 350mm |
| Max. Forming Width | 520mm |
| Max. Forming depth | 80mm |
| Upper and Lower Forming Power | Top heater 43kw, bottom heater 41KW |
| Motor Power | Main motor power 4 kw, servo motor power:3kw,servo motor cutting power :4.5kw |
| Total Power | 380V 50HZ(220V 60HZ) 97KW Three-phase and four-wire |
| Water Consumption | 0.3m³/h (Tap water or recycle water) |
| Air Pressure | 0.5-0.8(mpa) |
| Exhaust Volume | ≥0.6 m³/min |
| Pressure of water supply | 0.2MPa |
| Machine overall size(L×W×H) | 4700×1675×1900mm |
| Area cost | 8700*3600 |
| The maximum width of material | 550mm |
| Weight | 5000KG |
Competitive:
1.Our company is a profession manufacture for Plastic Thermoforming Machine
2.This Thermoforming Machine Can use PP transparent Film
3.Change the mold is easy and fast, no use to adjust the Pivot.
4.Use the Servo motor driving the sheet, high precision
5.Touch screen Control, easy for Operation
6.Easy for operation and maintain
Configuration list:
| Products | Manufacturers |
| Touch Screen | Siemens Germany |
| PLC | Siemens Germany |
| Servo Motor | INVT (Shenzhen, China) |
| Programmable controller | OMRON Japan |
| Temperature module | INVT(Shenzhen, China) |
| Relay | OMRON Japan |
| Proximity switch | OMRON Japan |
| power switch | OMRON Japan |
| Frequency converter | INVT (Shenzhen, China) |
| Circuit breaker | Schneider France |
| Button switch | Schneider France |
| Emergency stop switch | Schneider France |
| Solenoid valve | AIRTAC Taiwan |
| Cylinder | AIRTAC Taiwan |
| solid state relay ; | Lang Ning Sino US joint venture |
| Reducer | Tongli China |
| pressure reducing valve | AIRTAC |
| electric motor | Lichao China |
