We Supply Whole Line Solution of Thermoforming and Packaging. Our New Type of Four Station Thermoforming Machine is Much more advanced Products in China
10 Years
| Ask Lasest Price | |
| Brand Name : | Jinghua |
| Certification : | CE SGS |
| Model Number : | JH420 |
| Price : | 1000.00-15000 |
| Delivery Time : | 30 days since We got Your down payment and lid samples |
| Payment Terms : | tt ,LC ,West union |
| Supply Ability : | 30 sets per month |

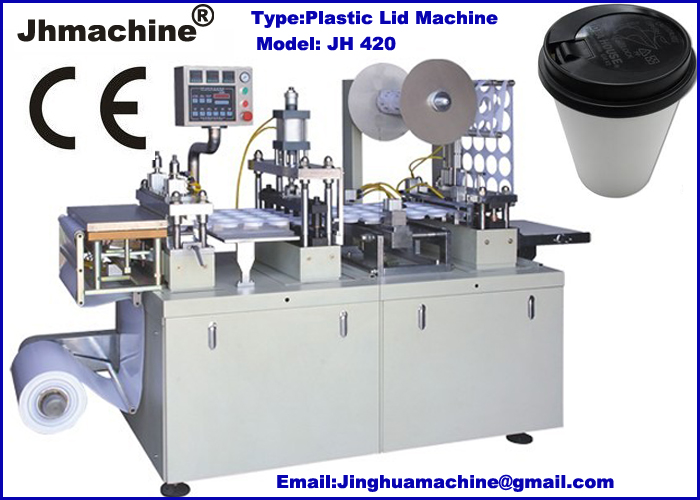

Hot sale Traditional Cup lid Machine high efficency for Jelly cup
and Milk cup
Quick Detail:
Type | Lid Machine |
Applications | For paper cup lid , Plastic Cup lid, Food Containers,cola cup lid, coffee cup lid. small biscuit trays.jelly Cup Lid. Plastic thermoform |
Packing Material | PET, PVC, HDPE, PS |
Certificate | CE, SGS |
After service | Engineer Avaliblel for Oversea installments |
Packaging Detail | Plywood case for Export thransportation |
Delivery Time | 25 days |
Description:
Mould Easy Changable Plastic Thermorforming Machine for coffee cup
lidis Our special design for PP transparent Film. This machine is
suitable for any of thermoform plastic sheet. This Plastic
Thermoforming Machine is update according to the mostly development
technical , compare with the traditional machine, It can solved
many impossible commitment
This Plastic Thermoforming Machine forming and cutting neat and
Clear. Cutting Off the product in order. Also good use for PS,
PE,PVC etc.
Whole machine is mainly made up by four Parts:
1. Preforming the raw material
Specification:
Main technical parameters | |
Speed | 15-32 times/min |
Route adjustable scope | 40-180mm |
Material width | <430mm |
Max. forming width | 400mm |
Max. Forming depth | Normal model 35mm Deepen model 55mm |
Upper and lower heating power | 2.2kw(×2) |
Motor power | 1.5kw |
Power | Three-phase four-wire |
Pressure of water supply | 0.2MPa |
Water consumption | 0.3m3/h(Tap water or recycle water) |
Pump volumetric flow rate | ≥0.2m3/min |
Air pressure | 0.5-0.7MPa |
Overall dimension | 2400×800×1560mm |
Packing size | 2150×1000×1750mm |
Weight | Normal 850kg Deep model 1000kg |
Competitive:
1.Our company is a professinal manufacture for Plastic
Thermoforming Machine
2.Change the mould is easy and fast, no use to adjust the Pivot.
3.Use the Servo motor driving the sheet, high precision
4.Touch sreen Control, easy for Operation
5.Easy for operation and maintainence
Machine Show room for Hot sale Traditional Cup lid Machine high efficency for Jelly cup
and Milk cup
Samples Showing for Hot sale Traditional Cup lid Machine high efficency for Jelly cup
and Milk cup
